Regada Actuators

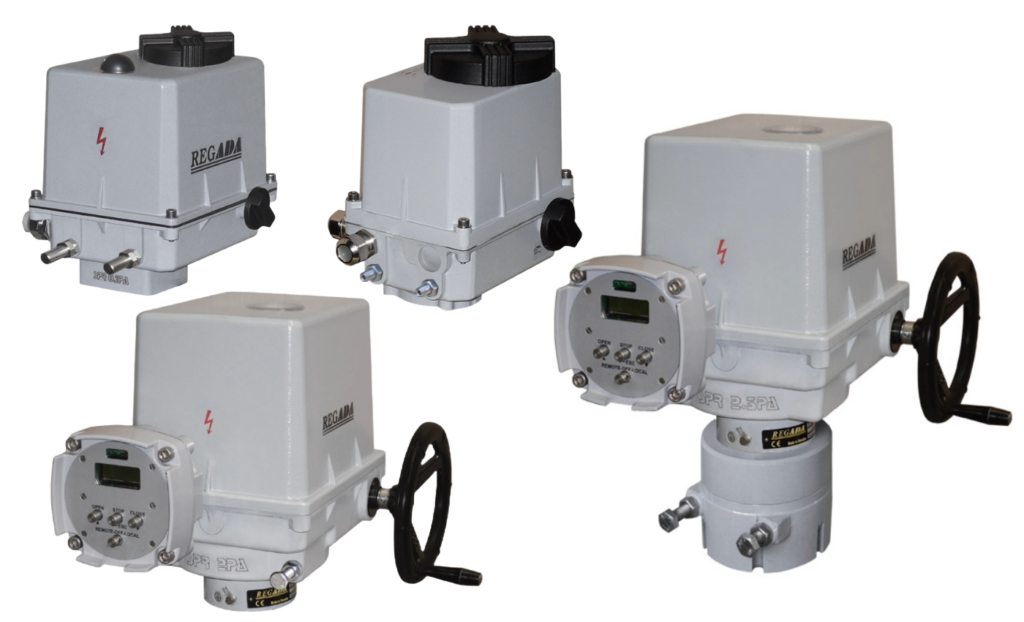

V-Flow Solutions offers a comprehensive range of Regada electric actuators suiting a wide range of applications with Ball, Butterfly and Gate/Globe valves, providing reliable and precise valve automation across a wide range of applications. The range includes units with switching-off thrusts up to 36,000 N, making them suitable for demanding industrial duties where high force and durability are required.
Designed for robust performance, Regada actuators combine proven engineering, accurate control, and long service life, offering an effective solution for a variety of valve types and operating conditions.
Regada
Part Turn - On/Off
Part Turn - Modulating
Part Turn - Positioning
Part Turn - ATEX
Multi Turn - On/Off
Multi Turn - Modulating
Multi Turn - Positioning
Multi Turn - ATEX
Linear - On/Off
Linear - Modulating
Linear - Positioning
Linear - ATEX
Part Turn - On/Off
Capable of between 40Nm and 1200Nm torque outputs, the Regada SP and MPR part turn on/off actuators support a wide range heavy duty valve automation applications.- Terminal board connection
- 2 position switches
- Adjustable switch-off torque from 50% to 100%
- Operating angle from 60° to 360°/90° to 270°/60° to 160° (MPR)
- Housed in IP67 enclosures
- Flanged ISO5211 connection
Options:
- 2 additional position switches
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
| View Range |
Torque | 40 – 1200 Nm |
Speed of Operation | 5 – 160 seconds |
Power Supply | 230V AC, 220V AC, 24V AC, 24V DC |
Part Turn - Modulating
Regada SRP modulating part turn actuators offer an extensive range of torque options and operating speeds.- Terminal board connection
- 2 programmable relays (RE1, RE2)
- Adjustable switch-off torque from 50% to 100%
- Operating angle from 50° to 360° or 60° to 360
- Housed in IP67 enclosures
- Mechanical stop ends
- Flanged ISO5211 connection
Options:
- Additional relays (R3, R4, R5)
- Local control
| View Range |
Torque | 40 – 575 Nm |
Speed of Operation | 5 – 160 seconds |
Power Supply | 230v, 3×400, 3×380, 240, 220, 120, 24V AC |
Part Turn - Positioning
The Regada SPR and MP part turn positioning actuators are capable of operating torques of between 40Nm and 1200Nm.- Terminal board connection
- 2 position switches
- Operating angle from 60° to 360°/90° to 270°(SPR 0) 60° to 160° (MP)
- Positioner: 0/4 to 20 mA, 0 to 10V
- Housed in IP67 enclosures
- Flanged ISO5211 connection
Options:
- 2 additional position switches
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
| View Range |
Torque | 40 – 1200 Nm |
Speed of Operation | 5 – 160 seconds |
Power Supply | 230V AC (MP/SPR 0 – 2.4), 3x400V AC (SPR 3 – 3.5), 3x380V options |
Part Turn - ATEX
Regada SP-Ex and UP-Ex series of Explosion proof electric part-turn actuators are suitable for a wide range of industrial applications in potentially explosive environments.- Terminal board connection
- 2 torque switches, 2 position switches
- Operating angle from 60° to 360°
- Housed in IP67 enclosures
- Manual override
Options:
- 2 additional position switches
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
- Positioner: 0/4 – 20mA, 0-10V
| View Range |
Torque | 90 – 575 Nm |
Speed of Operation | 10 – 160 seconds |
Power Supply | 3x400V AC, 24V AC, 24V DC |
Multi Turn - On/Off
The Regada SO and MO on/off multi turn actuators support a wide range of industrial applications with torques ranging from 5 to 1000Nm.- Terminal board connection
- 2 torque switches, 2 position switches
- Housed in IP67 enclosures
- Manual override
Options:
- 2 additional position switches
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
| View Range |
Torque | 5 – 1000 Nm |
Speed of Operation | 10 – 100 min-1 |
Power Supply | 230V AC/3x400V AC, 220V AC, 3x380V AC |
Multi Turn - Modulating
Regada SOR and MOR modulating multi turn actuators range from 5Nm to 1000Nm of torque.- Terminal board connection
- 2 programmable relays (SOR), 7 programmable relays (MOR)
- Operating position: SOR = any position / MOR = horizontal position (+/- 15°)
- Housed in IP67 enclosures
- Optional local control
| View Range |
Torque | 5 – 1000 Nm |
Speed of Operation | 10 – 100 min-1 |
Power Supply | 230V AC/3x400V AC |
Multi Turn - Positioning
The Regada SOR and MOR multi turn positioning actuators are capable of operating torques of between 5Nm and 1000Nm.- Terminal board connection
- 2 position switches
- Positioner: 0/4 to 20 mA, 0 to 10V
- Housed in IP67 enclosures
Options:
- 2 additional position switches
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
| View Range |
Torque | 5 – 1000 Nm |
Speed of Operation | 10 – 100 min-1 |
Power Supply | 230V AC, 220V AC, 3x380V AC |
Multi Turn - ATEX
Regada SO-Ex, MO-Ex and UM-Ex series of multi turn explosion proof electric actuators offer an extensive range of specifications.- Terminal board connection
- 2 torque switches, 2 position switches
- Housed in IP67 enclosures
- Manual override
Options:
- 2 additional position switches
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
| View Range |
Torque | 5 – 1000 Nm |
Speed of Operation | 10 – 160 seconds |
Power Supply | 3x400V AC, 24V AC, 24V DC |
Linear - On/Off
The Regada MT, MTR and ST linear on/off electrical actuators for linear valve control applications.- Terminal board connection
- 2 thrust switches, 2 position switches
- Housed in IP67 enclosures
- Manual override
Options:
- 2 additional position switches
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
- Local control
| View Range |
Switching Off Thrust | 250 – 36000 N |
Speed of Operation | 4 – 250 mm/min |
Power Supply | 230V AC, 3x400V AC (more on request) |
Linear - Modulating
Regada STR modulating linear electric actuators with switching off thrust ranging from 360N to 25000N of torque.- Terminal board connection
- 2 programmable relays
- Housed in IP67 enclosures
Options:
- Additional relays R3, R4, R5
- Local control
| View Range |
Switching Off Thrust | 360 – 25000 N |
Speed of Operation | 5 – 120 mm/min |
Power Supply | 220V AC, 24V AC, 3×380V AC, 3×400V AC, 240V AC, 120V AC |
Linear - Positioning
The Regada MT and STR positioning linear actuators for applications where linear valve control is required.- Terminal board connection
- 1 position switch
- 2 torque switches
- Positioner: 0/4 to 20 mA, 0 to 10V
- Housed in IP67 enclosures
Options:
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
- Local control
| View Range |
Switching Off Thrust | 360 – 36000 N |
Speed of Operation | 4 – 180 mm/min |
Power Supply | 230V AC, 220V AC, 3x400V AC, 3x380V AC, 24V AC, 24V DC |
Linear - ATEX
Regada ST-Ex, UL-Ex and MT-Ex series of explosion proof linear electric actuators for globe valves and control valves.- Terminal board connection
- 2 torque switches, 2 position switches
- Housed in IP67 enclosures
- Manual override
Options:
- 2 additional position switches
- Transmitter potentiometer, electronic position transmitter and CPT (capacitive) options available
| View Range |
Switching Off Thrust | 1400 – 36000 N |
Speed of Operation | 8 – 180 mm/min |
Power Supply | 230V AC, 3x400V AC (more on request) |
