Pneumatic
HP Series: Pneumatic Actuators
Rack and Pinion

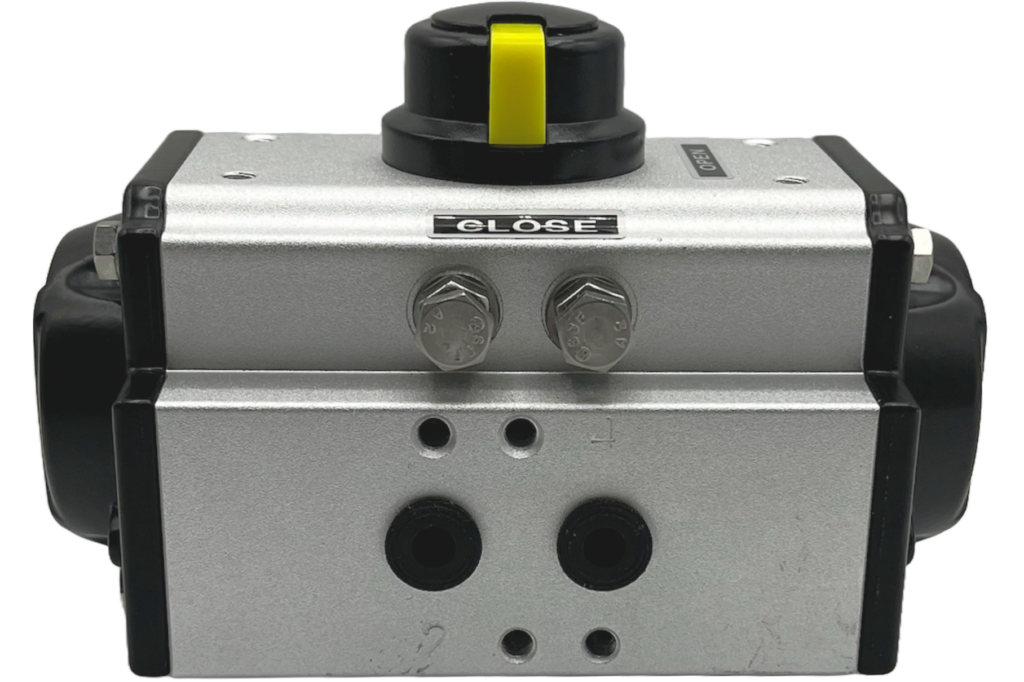

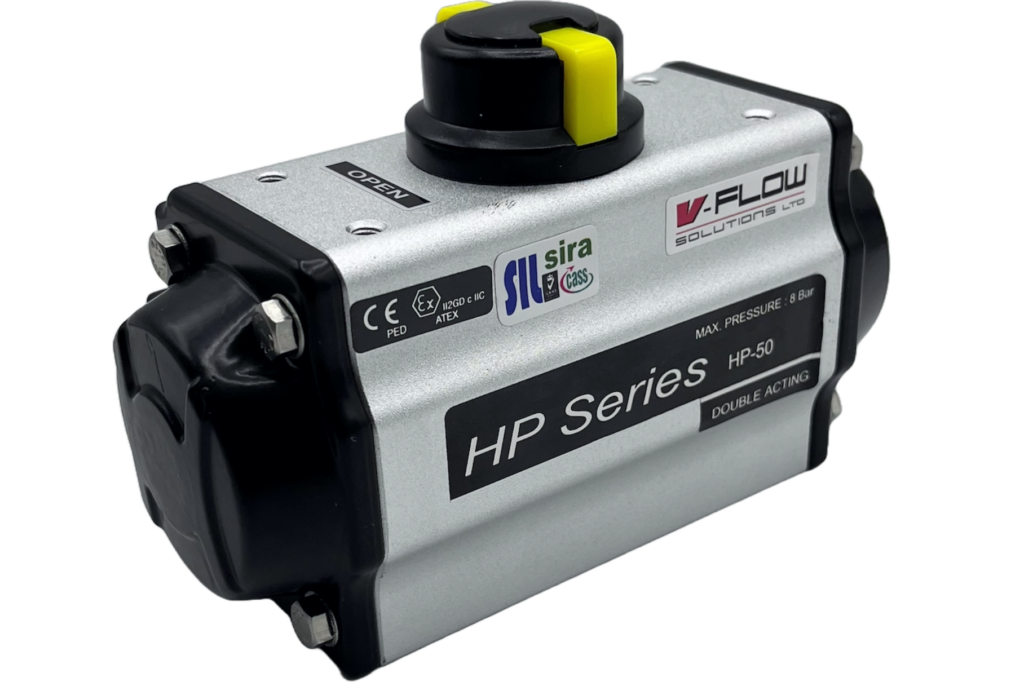

The V-Flow HP series of rack and pinion pneumatic actuators are specifically designed to provide a wide range of torque outputs to suit quarter turn ball, butterfly, plug valves and dampers for a complete valve automated solution.
Manufactured to high standards using extruded aluminium bodies with a hard anodised coating, the HP series provide a reliable service at competitive prices.
The HP series of Pneumatic Actuators are available in Double Acting (e.g. HP50) and Spring Return (e.g. HP50S) configurations.
| Operating Pressure | 2.5 to 8 Bar |
| Operating Temperature | -20°C to +80°C -35°C to +80°C or -20°C to +150°C on request |
| Certification | SIL2, ATEX, PED, CE, RINA (Marine) |
HP series Actuators feature a VDI-VDE 3845 interface enabling the use of a Namur Solenoid Valve.
For potentially explosive environments, an ATEX explosion proof or intrinsically safe Solenoid Valve can be provided.
Standard Specification:
| Inlet Port | 1/4″ BSP |
| Exhaust Ports | 1/8″ BSP |
| Certification | IP65, SIL4 |
For open and closed position feedback, a switch box can be fitted to the VDI/VDE 3845 interface on top of the unit.
A range of switch boxes can be provided from options with 2x SPDT Switches or Wire Proximity Sensors to IP68 and ATEX explosion proof switch boxes.
Specification
| Enclosure | IP67 Polyester Powder Coated Die Cast Aluminium (IP68 option available) |
| Cable Entries | 2 x M20 (other options available for other switch boxes) |
| Switch Options | 2 x SPDT, 2×2 or 2×3 wire proximity sensors |
Accurate valve position using the HP series Pneumatic Actuators can be achieved using Pneumatic or Electro-Pneumatic positioners which can be fitted to the VDI/VDE 3845 NAMUR interface on the top of the unit.
The positioning system features an IP66 Die Cast Aluminium Alloy enclosure with a corrosion resistant coating and options for ATEX Eexd or Eexia housings.
There are options for a low-profile visual indicator or a dome beacon indicator.
The positioners have a standard ambient temperature of -20°C to +70°C with option of up to +120°C.
Electro-Pneumatic positioners have options for 2x SPDT limit switches and 4-20mA Position Transmitter (output signal).
For more information on our range of Pneumatic Actuators contact our experienced engineers:
Call our technical department: 01234 855888
Alternatively email: sales@v-flowsolutions.co.uk
View our range of pneumatically actuated ball valves and butterfly valves below.
The ball valve range features 2-way and 3-way valves in brass, stainless steel and plastics. We supply pneumatically actuated Butterfly Valves in sizes ranging from 2″ to 12″ with larger Butterfly Valves available on-request.
HP Series: Pneumatic Actuators
Scotch Yoke
Manufactured to high standards using extruded aluminium bodies with a hard anodised coating, the HP series provide a reliable service at very competitive prices.
The V-Flow HP series of Scotch Yoke pneumatic actuators are available with single or double acting operation and are designed to provide a wide range of torque outputs.
Torque: HP Series Scotch Yoke Actuators
HP – 211S
| AIR TORQUE | SPRING TORQUE | |||||
| START | RUN | END | START | RUN | END | |
| 4.2 Bar | 1,114 Nm | 452 Nm | 634 Nm | 678 Nm | 283 Nm | 393 Nm |
| 5.6 Bar | 1,385 Nm | 537Nm | 724 Nm | 1,026 Nm | 446 Nm | 624 Nm |
HP-212S
| AIR TORQUE | SPRING TORQUE | |||||
| START | RUN | END | START | RUN | END | |
| 4.2 Bar | 2,226 Nm | 904 Nm | 1,266 Nm | 1,356 Nm | 565 Nm | 780 Nm |
| 5.6 Bar | 2,769 Nm | 1,074 Nm | 1,446 Nm | 2,045 Nm | 883 Nm | 1,243 Nm |
HP-211
| START | RUN | END | |
| 4.2 Bar | 1,507 Nm | 753 Nm | 1,312 Nm |
| 5.6 Bar | 2,009 Nm | 1,005 Nm | 1,750 Nm |
| 7 Bar | 2,511 Nm | 1,255 Nm | 2,187 Nm |
HP-212
| START | RUN | END | |
| 4.2 Bar | 3,011 Nm | 1,506 Nm | 2,622 Nm |
| 5.6 Bar | 4,017 Nm | 2,006 Nm | 3,498 Nm |
| 7 Bar | 5,022 Nm | 2,509 Nm | 4,373 Nm |
