Additional information
| Size | |
|---|---|
| Action | Direct Acting |
| Function | 2 Way |
| Operation | Normally Closed |
| Application | |
| Zero Bar Rated | Yes |
| Valve Material | Stainless Steel |
D299DVH 1/4″ – 2/2 NC St/St Direct Acting
From £162.08
D299DVH
Specifications
- Pressure: 0 – 15 Bar (AC) / 0 – 8 BAR (DC)
- Media: Water, Oil, Air, Aggressive fluids
- Media Temperature: – 10°C ÷ + 130°C
- Ambient Temperature: – 10°C ÷ + 50°C
- Orifice size: Ø3mm
- Flow rate Kvs: 4.5 L/min
- Flow direction: Overseat, Port 1 to Port 2
- Body material: Stainless Steel (1.4305 en 10088/AISI 303)
- Orifice material: Stainless steel (1.4305 en 10088/AISI 303)
- Seal material: FKM
Prices shown do not include VAT
*VAT will be added at cart and checkout
*VAT will be added at cart and checkout
Coil Voltage
Select Required Voltage

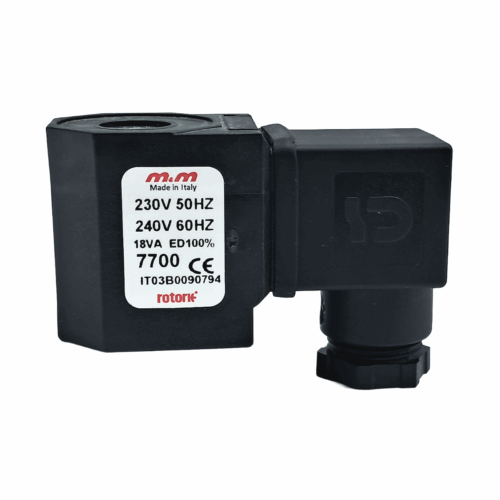

230v (AC) D299DVH-7700 - 1/4" 2/2 NC
£162.08

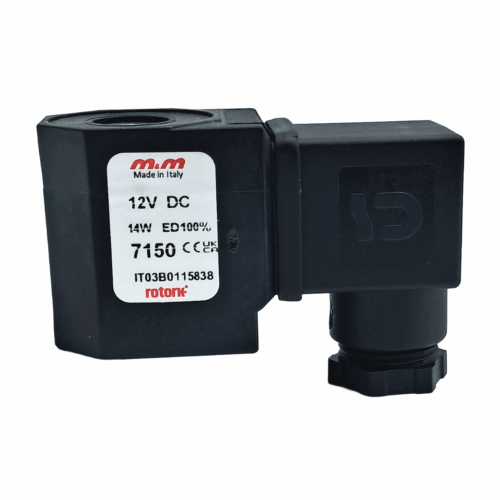

12v (DC) D299DVH-7150 - 1/4" 2/2 NC
£162.08

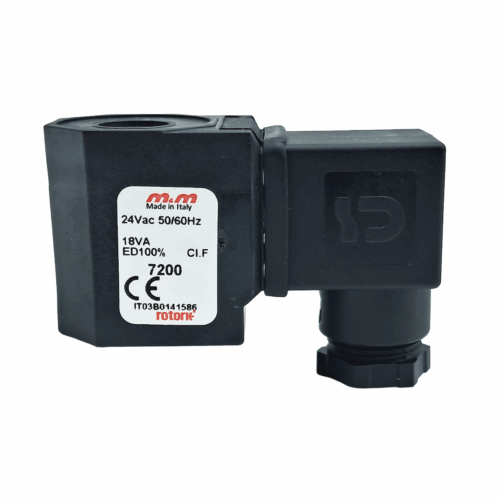

24v (AC) D299DVH-7200 - 1/4" 2/2 NC
£162.08

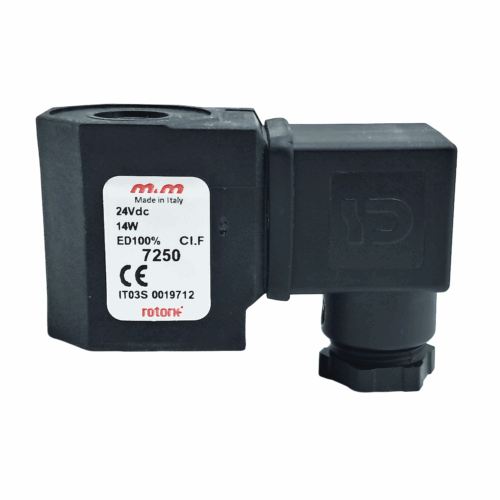

24v (DC) D299DVH-7250 - 1/4" 2/2 NC
£162.08

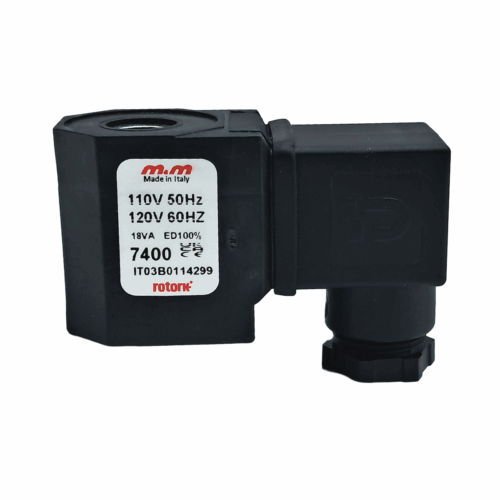

110v (AC) D299DVH-7400 - 1/4" 2/2 NC
£162.08
110v (DC) D299DVH-7450 - 1/4" 2/2 NC
£163.90
