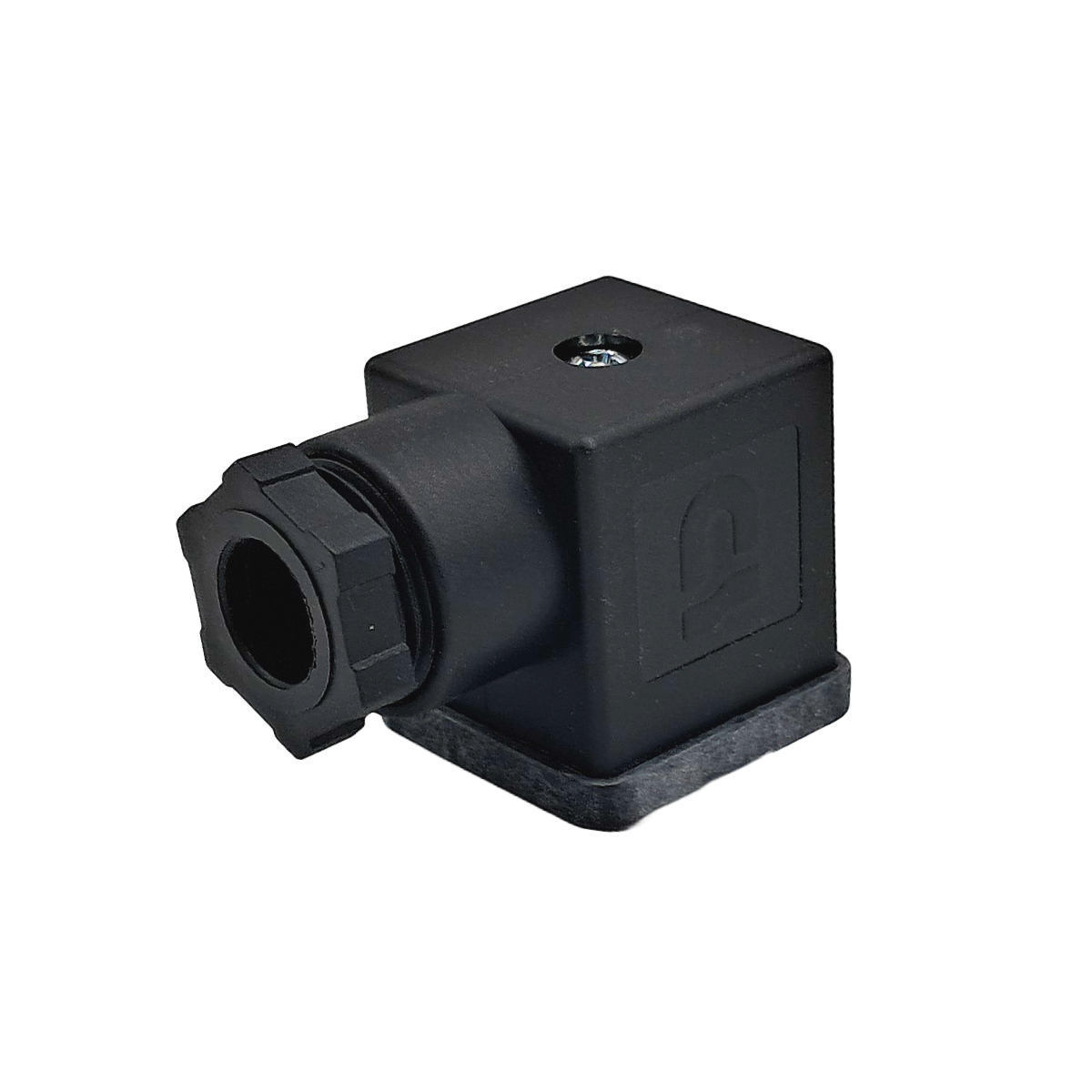

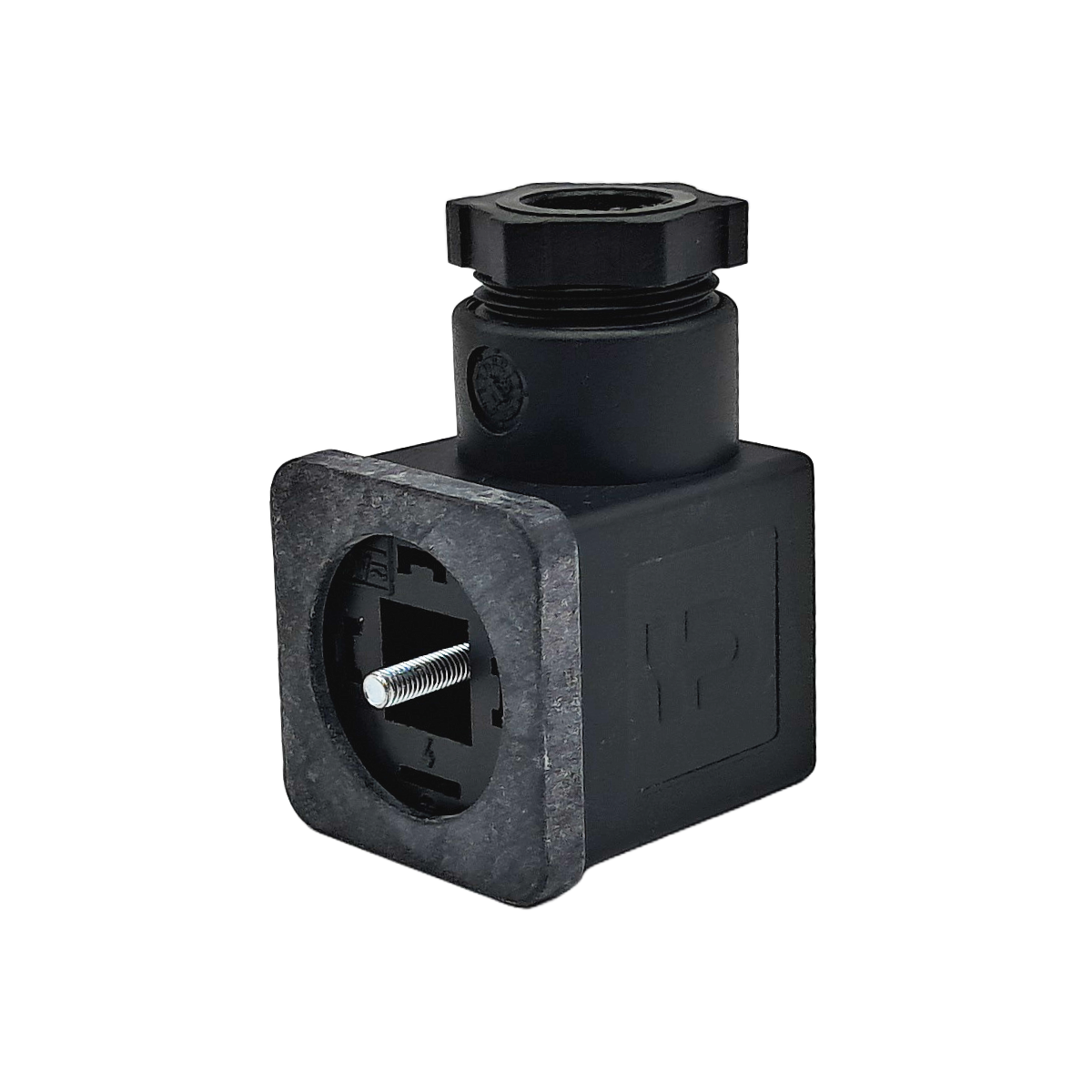

6-11142-2000 Form A Connector

£3.03

Specifications

  • Nass Magnet DIN connector / 6-11142-2000
  • Pin spacing: 18 mm
  • Max voltage: 250v
  • Nominal current: 10A
  • Protection class: IP65
  • Working temperature: -25°C to 125°C
  • Cable diameter: 5-10 mm
  • One-piece housing / black housing
  • Number of poles: 2 + ground
  • Ground position: H12 (as standard)
  • NBR profile gasket



£3.03

Prices shown do not include VAT
*VAT will be added at cart and checkout



SKU: 6-11142-2000 Categories: ,

Description

Specifications:

  • Body colour: Black
  • Spacing: 18mm
  • Max voltage: 250v
  • Nominal current: 10A
  • Protection class: IP65
  • Earth position: H12 (as standard)
  • Working temp.: -25° to 125°C
