Description
Specifications:
- Body colour: Clear
- Spacing: 18mm
- Max voltage: 24v
- Nominal current: 10A
- Protection class: IP65
- Earth position: H12 (as standard)
- Working temp.: -25° to 125°C

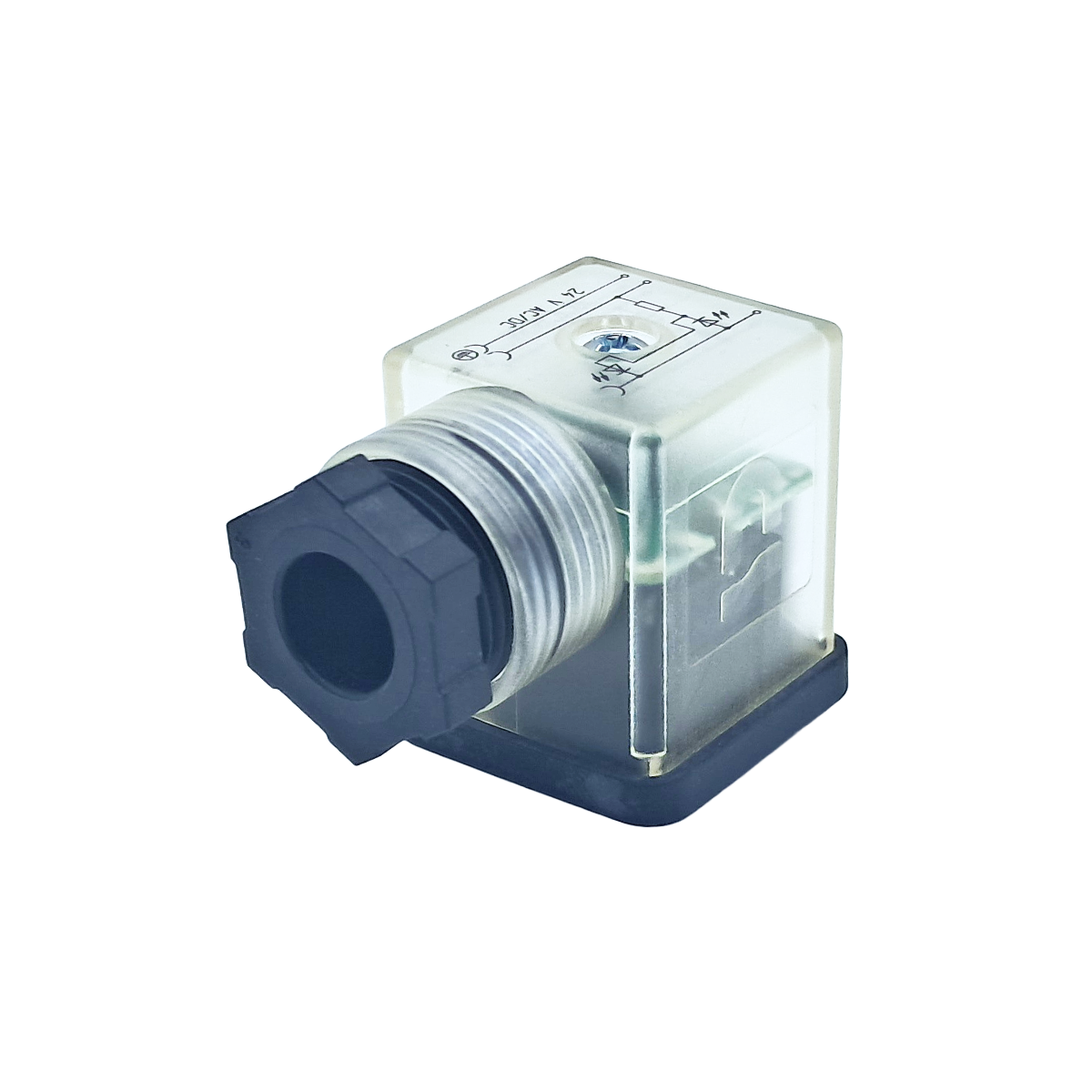

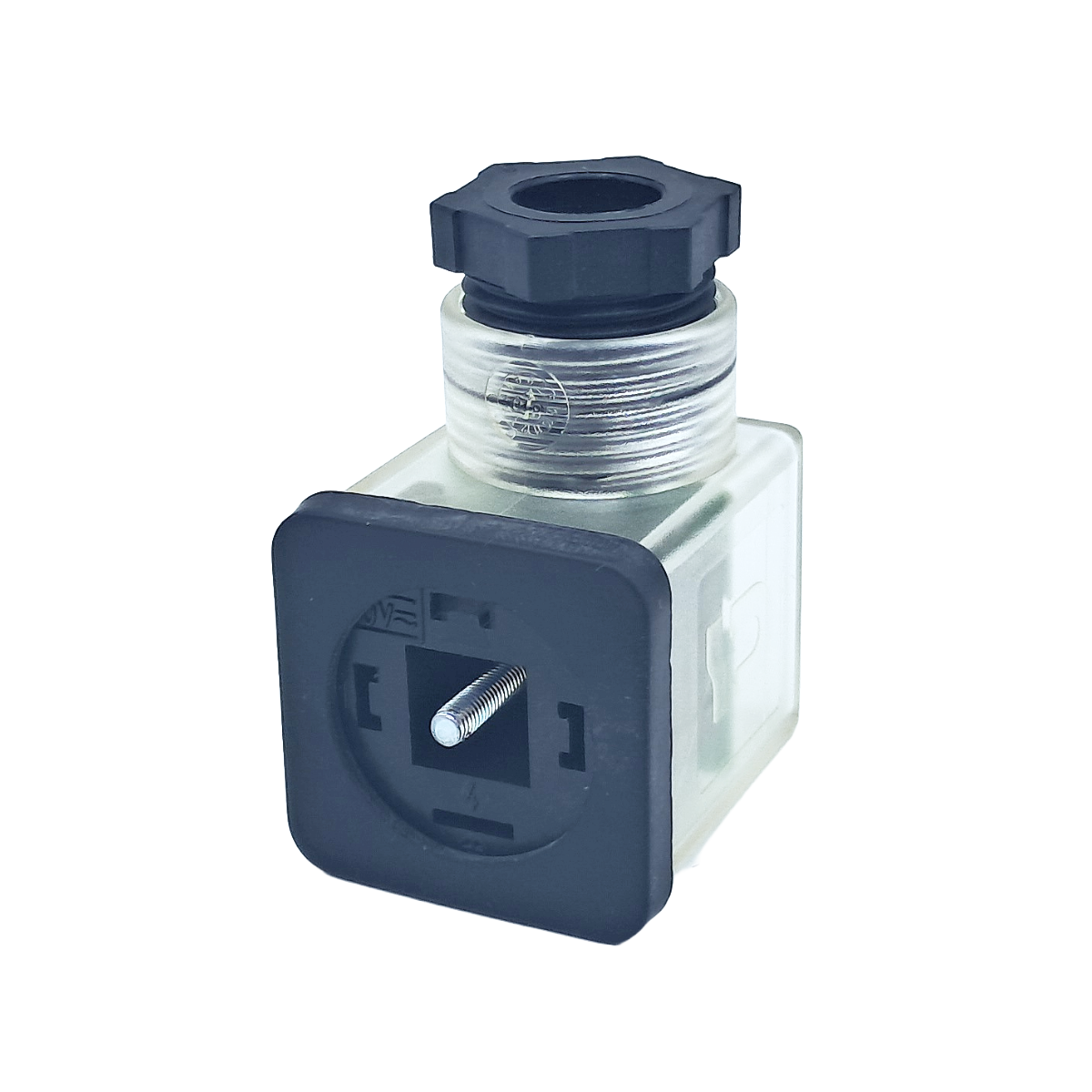

6-11442-2502 Form A DIN Red LED 24v
£11.19
Specifications
- Nass Magnet DIN connector / 6-11442-2502
- DIN 43650 / ISO 4400 (EN 175301-803) connector – form A
- Pin spacing: 18 mm
- Max voltage: 24v
- Nominal current: 10A
- Protection class: IP65
- Working temperature: -25°C to 125°C
- Cable diameter: 5-10 mm
- One-piece housing / transparent housing
- Circuit board inside housing
- Number of poles: 2 + ground
- Ground position: H12 (as standard)
- NBR profile gasket
£11.19
Prices shown do not include VAT
*VAT will be added at cart and checkout
Bulk deal
| Quantity | Discount | Discounted price |
| 7 - 14 | 5% | £10.63 |
| 15 - 24 | 10% | £10.07 |
| 25 - 34 | 15% | £9.51 |
| 35 - 54 | 20% | £8.95 |
| 55 + | 30% | £7.83 |
Additional information
| Connector Form | Form A |
|---|
