Additional information
| Action | Pilot Operated |
|---|---|
| Function | 2 Way |
| Operation | Normally Closed |
| Application | |
| Size | |
| Zero Bar Rated | No |
| Valve Material | Brass |
B205DBZ 1/2″ 2/2 NC Pilot Operated
From £126.84
B205DBZ
Specifications
- Pressure; 0.3 – 16 Bar (AC)
- Media: Water, Oil, Air
- Media Temperature: – 10°C ÷ + 90°C
- Ambient Temperature: – 10°C ÷ + 50°C
- Orifice size: Ø13mm
- Flow rate Kvs: 63 L/min
- Flow direction: Overseat, Port 1 to Port 2
- Body material: Brass (CW719R EN 12165) Low lead content
- Seal material: NBR
Prices shown do not include VAT
*VAT will be added at cart and checkout
*VAT will be added at cart and checkout
Coil Voltage
Select Required Voltage

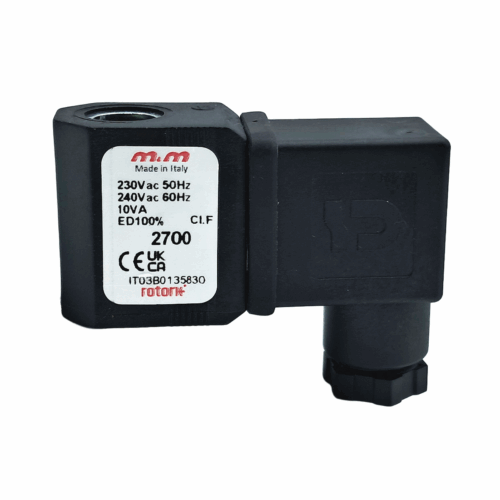

230v (AC) B205DBZ-2700 - 1/2" 2/2 NC
£126.84

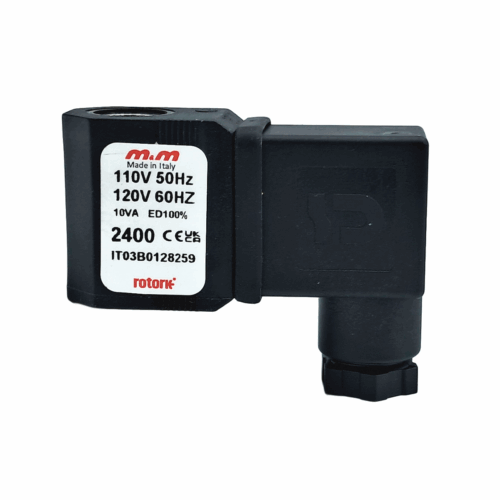

110v (AC) B205DBZ-2400 - 1/2" 2/2 NC
£126.84

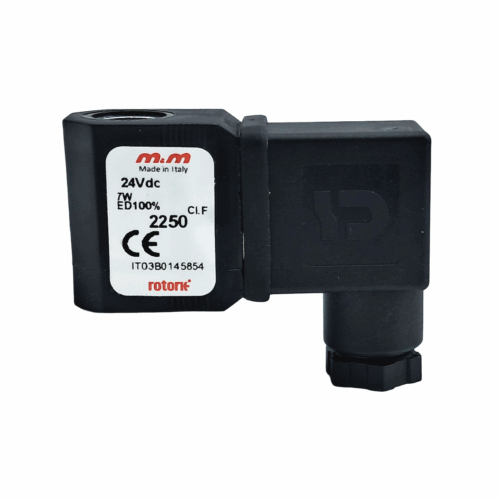

24v (DC) B205DBZ-2250 - 1/2" 2/2 NC
£126.84

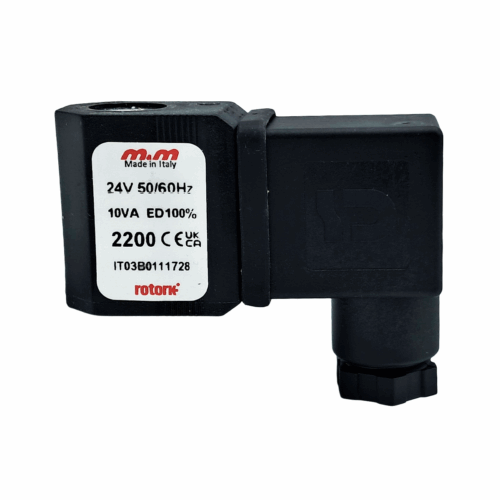

24v (AC) B205DBZ-2200 - 1/2" 2/2 NC
£126.84

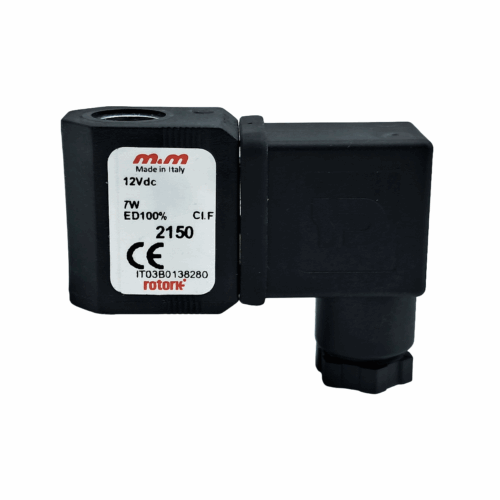

12v (DC) B205DBZ-2150 - 1/2" 2/2 NC
£127.03
