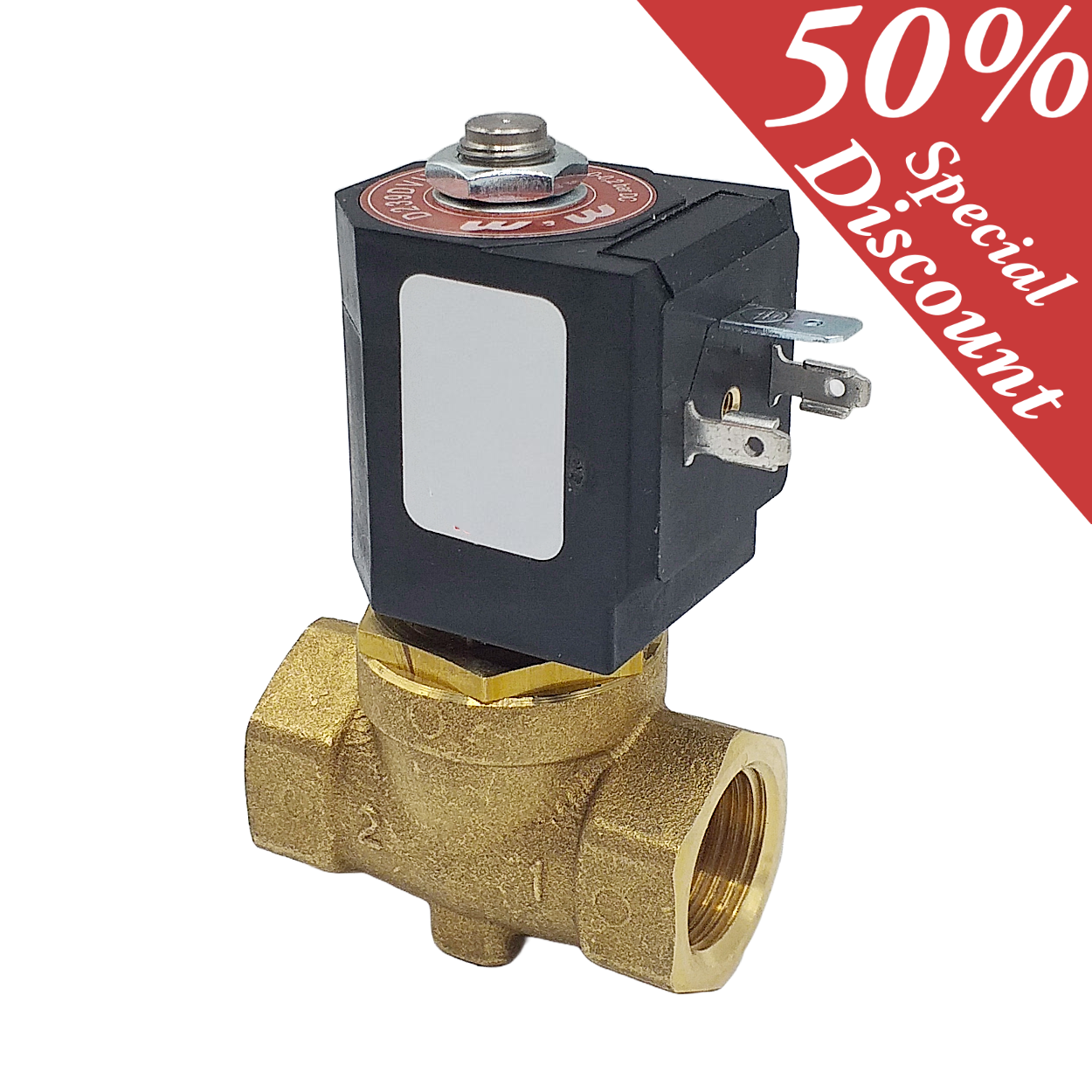

Name: D239DVU-7200 24v (AC) - 1/2" 2/2 NC
SKU: D239DVU-7200
Availability: InStock

D239DVU-7200 24v (AC) – 1/2″ 2/2 NC

£117.54

Specifications

Pressure; 0 – 0.4 Bar
Media: Water, Oil, Air
Media Temperature: – 10°C ÷ + 130°C
Ambient Temperature: – 10°C ÷ + 50°C
Orifice size: Ø10.5mm
Flow rate Kv (m³/h): 1.50
Body material: Brass
Operator material: AISI 430F Stainless Steel
Seal material: FKM
A range of Orifice sizes and flow rates are available on request

Prices shown do not include VAT
*VAT will be added at cart and checkout

Coil included

SKU: D239DVU-7200 Categories: General Purpose, Solenoid Valves, Valves with coils

Description
Additional information

Description

D239DVU- 7200

Specifications

Pressure; 0 – 0.4 Bar
Media: Water, Oil, Air
Media Temperature: – 10°C ÷ + 130°C
Ambient Temperature: – 10°C ÷ + 50°C
Orifice size: Ø10.5mm
Flow rate Kv (m³/h): 1.50
Body material: Brass
Operator material: AISI 430F Stainless Steel
Seal material: FKM
A range of Orifice sizes and flow rates are available on request

Additional information

Application	General Purpose
Size	1/2"
Voltage	24v / 50-60 Hz
Action	Direct Acting
Function	2 Way
Operation	Normally Closed
