Additional information
| Action | Pilot Operated |
|---|---|
| Function | 2 Way |
| Operation | Normally Closed |
| Application | |
| Size | |
| Zero Bar Rated | No |
| Valve Material | Brass |
D606DTY 3/4″ 2/2 NC Pilot/Op Steam
From £337.11
D606DTY
Specifications
- 3/4″ High Temperature Steam Pilot Operated Normally Closed Solenoid Valve with a robust Brass body
- Pressure; 1 – 9 Barg
- Media: Steam
- Media Temperature: + 80°C ÷ + 180°C
- Ambient Temperature: – 10°C ÷ + 70°C
- Orifice size: Ø24mm
- Flow rate Kv (m³/h): 7.20
- Body material: Brass
- Operator material: AISI 430F Stainless Steel
- Seal material: PTFE
- Contact our technical team for a bespoke or custom solution
Prices shown do not include VAT
*VAT will be added at cart and checkout
Coil Voltage
Select Required Voltage

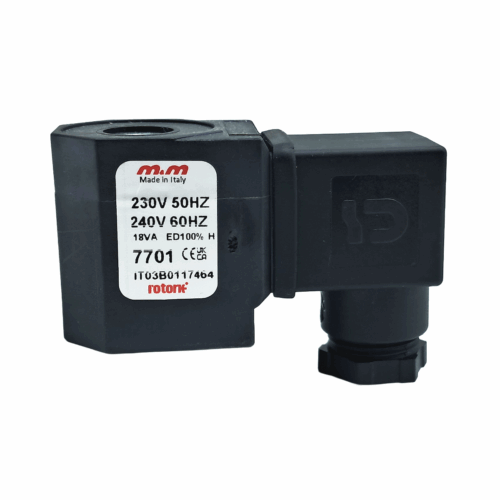

230V AC 50/60Hz class H coil (7701) and DIN connector
£51.77

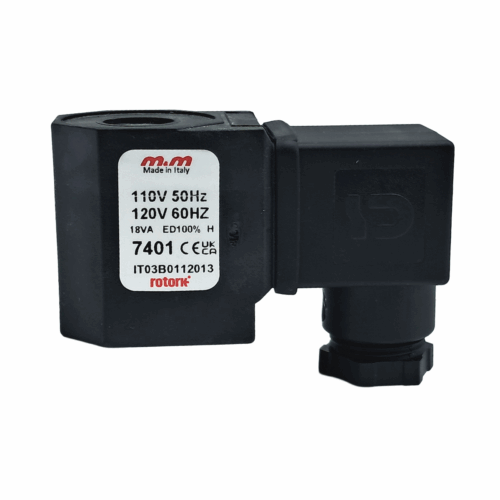

110V AC 50/60Hz class H coil (7401) and DIN connector
£51.77

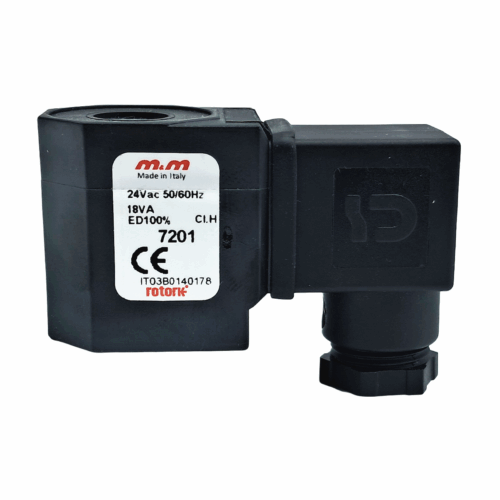

24V AC 50/60Hz class H coil (7201) and DIN connector
£51.77

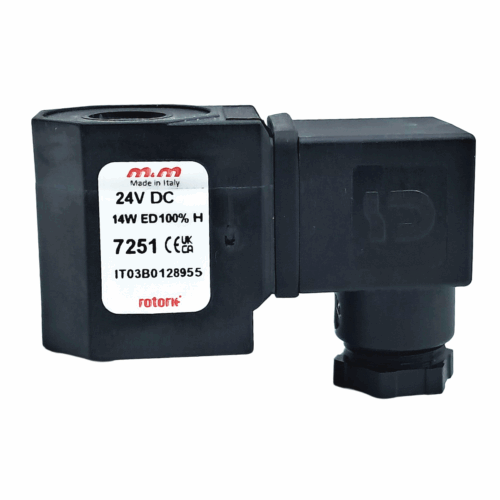

24V DC 14W class H coil (7251) and DIN connector
£51.77

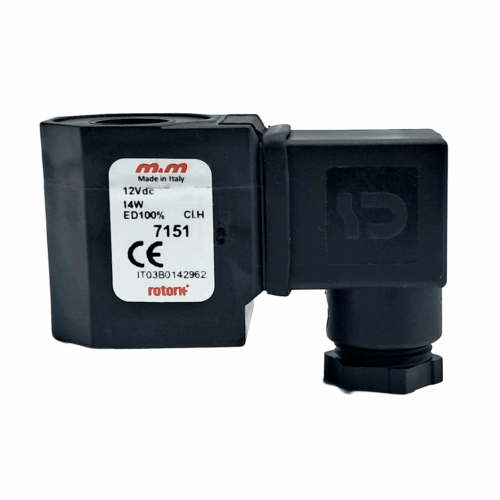

12V DC 14W class H coil (7151) and DIN connector
£54.61
Without coil (valve body only)
