R2SP-R2SR ⅜” -> 2″ Brass 2/2 Pilot Op. ATEX

Price: contact us


This item is not stocked



If you are interested in this product and would like more information, please contact us by calling:
01234 855888



You can also reach us by email:
sales@v-flowsolutions.co.uk



  • ATEX/Ex db rated Solenoid Valve with a Brass CW617N body
  • Available in the following sizes : 3/8″, 1/2″, 3/4″, 1″, 1¼”, 1½”, 2″
  • Maximum differential pressure: 0.15 – 10 Bar
  • ATEX – Ex db (flameproof) / Ex tb (dust-tight)
  • Zone 1 (Gas) / Zone 21 (Dust)
  • Prices TBA
  • See specification for more details
SKU: R2SP-R2SR Ex Categories: ,

Description

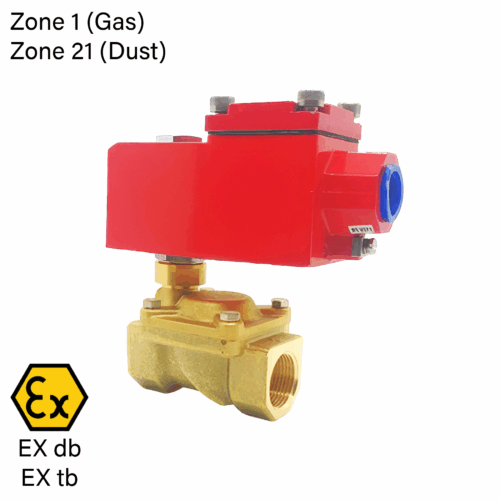

R2SP-R2SR Ex db – 2/2 Pilot Operated ATEX Solenoid Valve

ATEX Rating (with 50Ax coil)

ATEX Rated – Ex db zone 1 (Flameproof)

 ATEX protection grade:

II 2GD    Ex db IIC T6/T5 Gb

Ex tb IIIC T80°C/T95°C Db, IP66/IP67

T122 ATEX 278 X

-40°C<Ta<60°C FOR T6

-40°C<Ta<70°C FOR T5

Additional information

Application

Function

2 Way

Operation

Normally Closed, Normally Open

Action

Pilot Operated

Size

, , , , , ,

Valve Material

Brass
