The DPS offers a range of different controls using the DIP switches inside the unit.
For more information on the control offered by the DPS system and options for the VF range of J4C actuators, ask our experienced engineers by calling us at 01234 855888, alternatively email us at sales@v-flowsolutions.co.uk

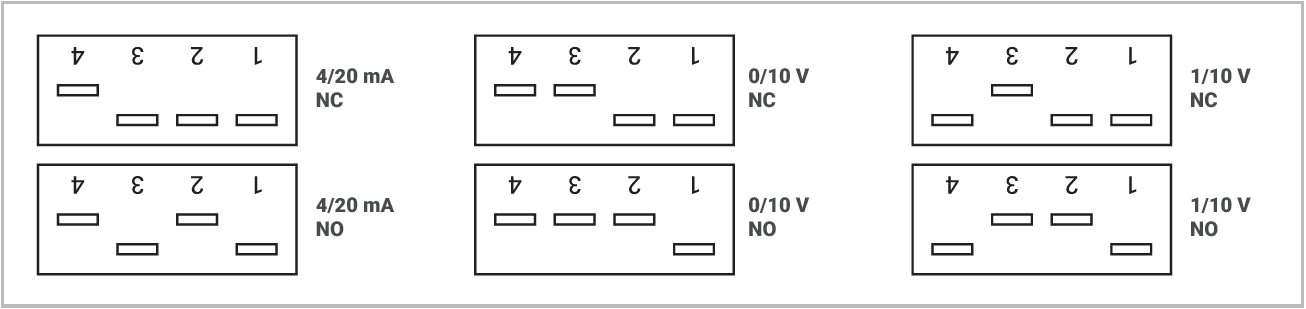

DIP switches:
Inside your J4C actuator fitted with DPS, there are internal DIP switches for selecting the appropriate positioning control mode – shown in the guide below.
Prices shown do not include VAT *VAT will be added at cart and checkout
The DPS offers a range of different controls using the DIP switches inside the unit.
For more information on the control offered by the DPS system and options for the VF range of J4C actuators, ask our experienced engineers by calling us at 01234 855888, alternatively email us at sales@v-flowsolutions.co.uk
Additional information
Electrical Control
0-10v NC, 0-10v NO, 1-10v NC, 1-10v NO, 4/20mA NC, 4/20mA NO
