Description

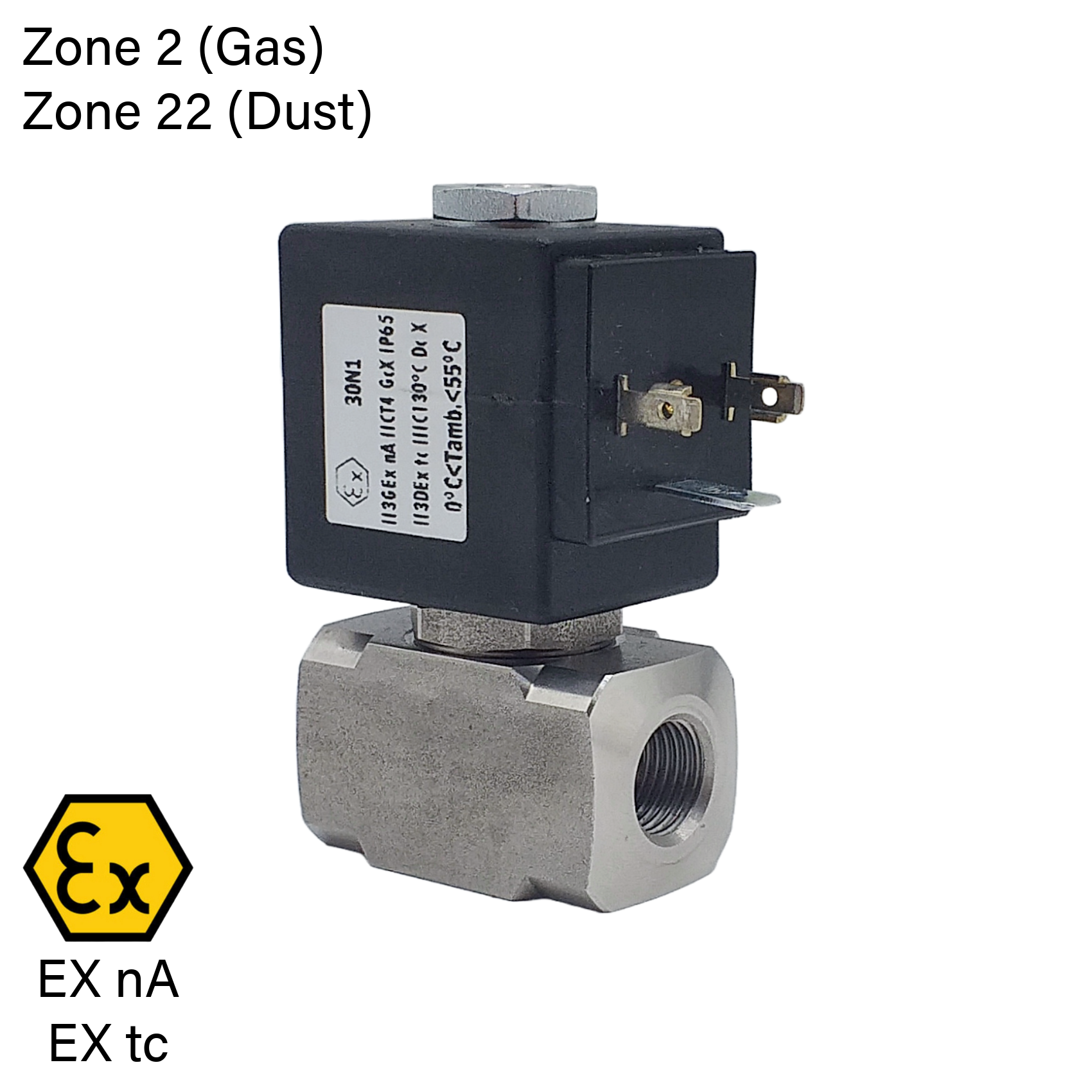

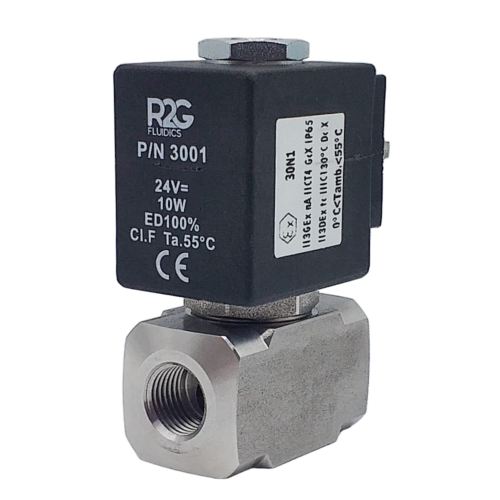

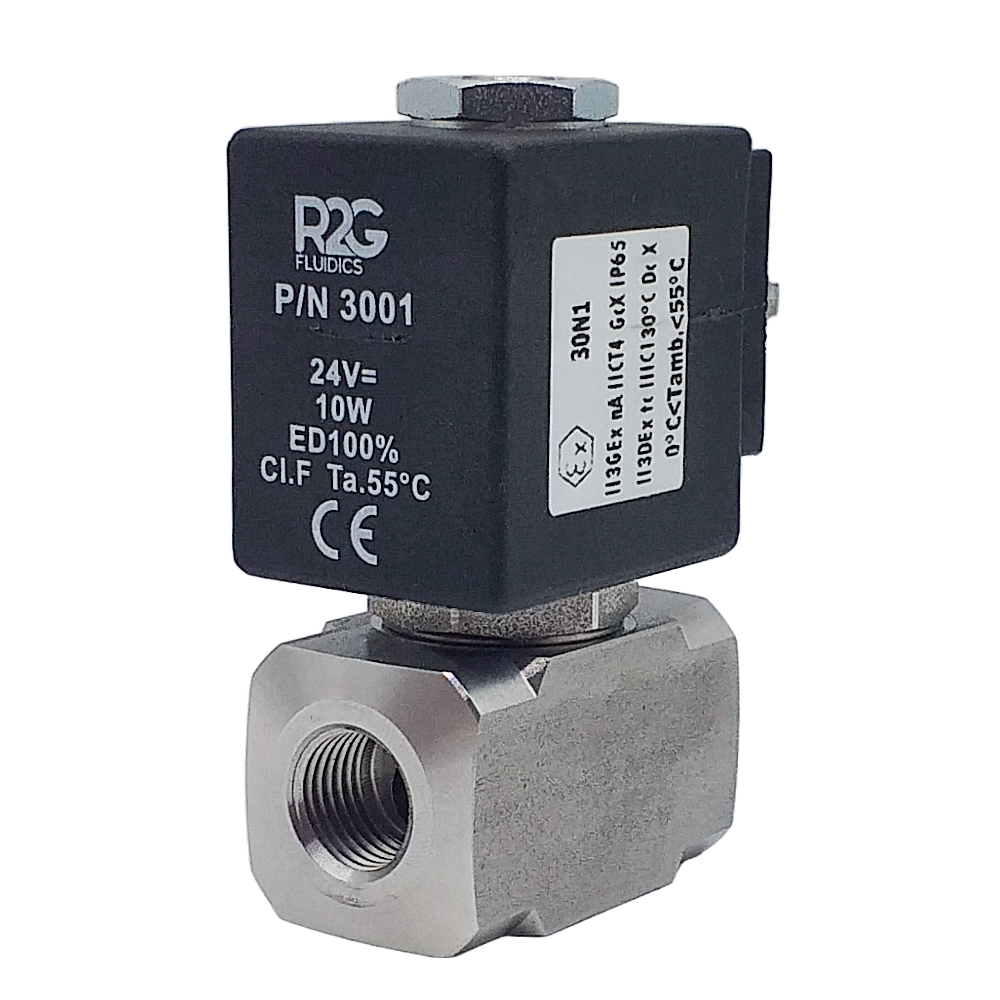

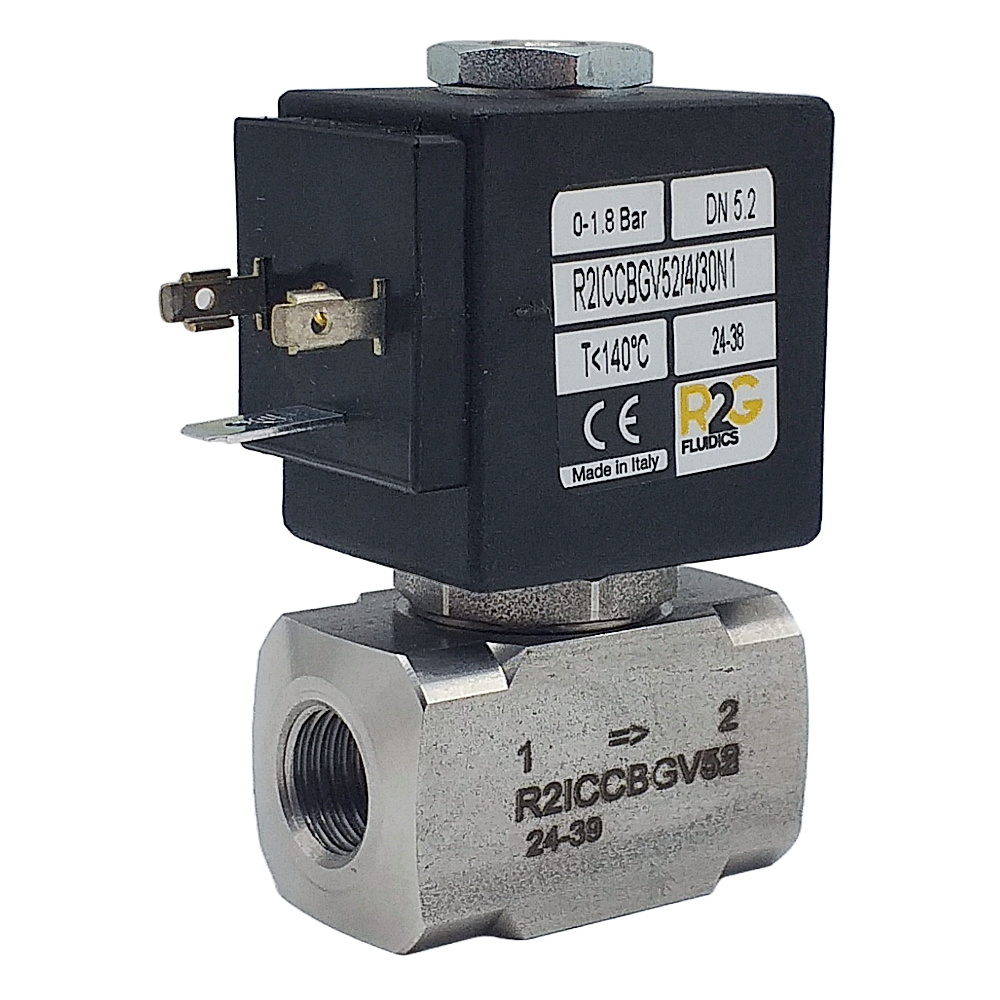

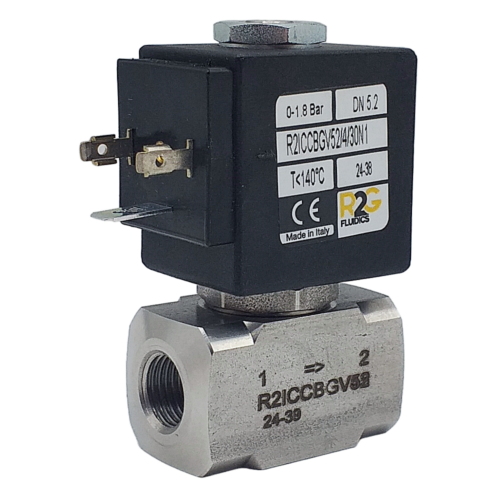

R2IC Ex nA 2/2 Direct Acting Stainless Steel ATEX Solenoid Valve
ATEX Rating (with 30Nx coil)
ATEX Rated – Ex nA zone 2 (Non-Sparking) ATEX protection grade:
II 3G Ex nA IIC T3 Gc
II 3D Ex tc IIIC T200°C Dc IP65
R2IC ¼”, ⅜”, ½” 2/2 (0 Bar Rated) St. Steel ATEX
Price: contact us
This item is not stocked
If you are interested in this product and would like more information, please contact us by calling:
01234 855888
You can also reach us by email:
sales@v-flowsolutions.co.uk
- A General Purpose ATEX/Ex nA rated Solenoid Valve capable of working with temperatures up to: -40°C to 180°C
- Available in the following sizes : 1/4″, 3/8″, 1/2″
- Maximum differential pressure: 0 – 100 Bar (for smallest orifice size)
- ATEX – Ex nA (non-sparking) / Ex tc (dust-tight)
- Zone 2 (Gas) / Zone 22 (Dust)
- Prices TBA
- See specification for more details
