M&M International Piston Valves

V-Flow Solutions supply M&M International Piston Valves with a range of sizes from 1/2″ to 2″ with threaded connections available as well as flanged, RJT and weld connections available on request.

V-Flow Solutions also supply manual angle seat piston valves, for information on our range of manual piston valves view the manual piston valves page.

For more details on our range of Piston Valves or to discuss a custom or bespoke solution:

Call our technical team on 01234 855888

or email us at sales@v-flowsolutions.co.uk

Size

Operation

Valve Material

Shipping Options:

Orders received after 3:30pm may not be dispatched on the day of receipt.

Piston Valve Range

Bronze Angle Seat Piston Valves

The M&M International pneumatic angle seat piston valve is fast becoming the industry standard piston valve for water and steam applications due to its high quality, reliability and competitive prices.

The valves feature stainless steel and bronze bodies with 180°C PTFE seals as standard.

Options:

200°C seals
4-20mA or 0-10v modulating control
manual override
switch-box
stroke inhibitor
connections: flanged, RJT – Tri-clamp, Weld

PDF

Stainless Steel Angle Seat Piston Valves

The M&M International Stainless Steel Angle Seat Piston Valve is compliant with ATEX certification.

The new stainless steel actuator is fully compliant with ATEX 2GD and is available in sizes 1/2″ to 2″ in normally open, normally closed and double acting configurations with 63mm and 90mm actuator sizes.

Options:

Standard 180°C PTFE or seals with an operating temperature of 200°C
4-20mA or 0-10v modulating control
manual override
switch-box
stroke inhibitor
connections: flanged, RJT – Tri-clamp, Weld

PDF

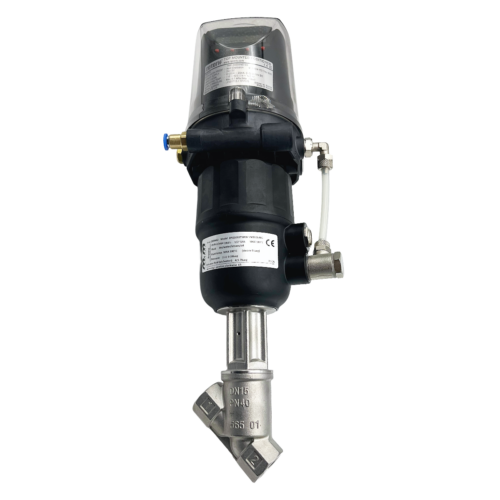

2/2 WAY Proportional Pneumatic Piston Valve

The M&M Proportional or modulating Piston Valve can be controlled by a 0-10V or 4-20mA signal to continuously adjust the position of the piston and accurately regulating the flow rate.

The valve gives the user the benefit of a precise control of flow rate with the minimum of air consumption with the same broad range of sizes, orifices and materials from the M&M piston valve range.

The piston valve has a IP65 protection and is available from sizes ½” to 2” in normally closed fail-safe position.

Temperature range is -10^OC to +140^OC with an option of +180^OC.

The M&M proportional pneumatic piston valve is an analogue proportional device.

PDF

Actuated Valves

Piston Valves

View Cart

M&M International Piston Valves

Call our technical team on 01234 855888

or email us at sales@v-flowsolutions.co.uk

Size

Operation

Valve Material

Orders received after 3:30pm may not be dispatched on the day of receipt.

B0200CTW00 7/8″ – 2 Way NC Piston Valve

BCG206CTX 3/4″ – Bi-Directional NC

BPG206CTX 3/4″ – Bi-Directional NC

BPG208STZ 1¼” – Bi-Directional NC

CG205CTW 1/2″ – 2 Way NC 1–>2 45mm Actuator

CG205STW 1/2″ – 2 Way NC 1–>2 63mm Actuator

CG206CTX 3/4″ – 2 Way NC 1–>2 45mm Actuator

CG206STX 3/4″ – 2 Way NC 1–>2 63mm Actuator

CG207CTY 1″ – 2 Way NC 1–>2 45mm Actuator

CG207STY 1″ – 2 Way NC 1–>2 63mm Actuator

CG209STK 1½” – 2 Way NC 1–>2 63mm Actuator

PG205CTW 1/2″ – 2 Way NC 1–>2 45mm Actuator

PG206CTX 3/4″ – 2 Way NC 1–>2 45mm Actuator

PG206STX 3/4″ – 2 Way NC 1–>2 63mm Actuator

PG207STY 1″ – 2 Way NC 1–>2 63mm Actuator

PG209STK 1½” – 2 Way NC 1–>2 63mm Actuator

PG210STJ 2″ – 2 Way NC 1–>2 63mm Actuator

RCG205CTW 1/2″ – 2 Way NO 2–>1 45mm Actuator

RCG206CTX 3/4″ – 2 Way NO 2–>1 45mm Actuator

RCG209STK 1½” – 2 Way NO 2–>1 63mm Actuator

RPG205CTW 1/2″ – 2 Way NO 2–>1 45mm Actuator

RPG205STW 1/2″ – 2 Way NO 2–>1 63mm Actuator

Piston Valve Range

Bronze Angle Seat Piston Valves

Stainless Steel Angle Seat Piston Valves

2/2 WAY Proportional Pneumatic Piston Valve

For more information on M&M piston valves contact our experienced engineers:

Telephone: 01234 855888

E-mail:sales@v-flowsolutions.co.uk

Alternatively visit our sister company: M&M International (UK) Ltd
